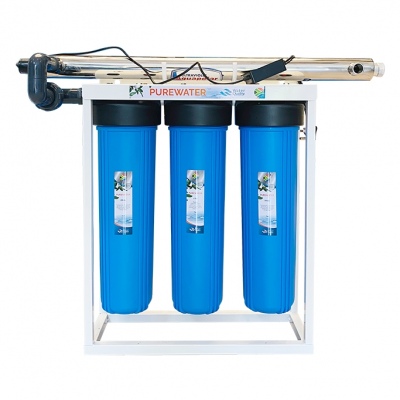

Whole House Water Filtration System With An Ultraviolet Disinfection System

The Whole House Water Filtration System is designed with a three-stage water filtration system that consists of 2x 20″ 1 and 5 microns Big Blue Polypropylene Sediment Removal filters, 1x 20″ Big Blue Activated Carbon Block filter, and an ultraviolet disinfection system.

First & Third Stage Filtration (Polypropylene Sediment removal Filters)

This sediment filter is for domestic water filtration purposes. It filters out sediments such as rust, mud, and dust particles from the municipality and rainwater.

The polypropylene sediment removal filter cartridge is constructed with three layers three of heat melting polypropylene. Compared to monolayer, the application life of PP melt blown filter cartridge with three layers is much longer. Therefore, the maintenance of the filters can be cut down a lot Using the right heating way for PP fiber, can reduce the filtering resistance a lot and enlarge the water flow much The uniform space of fiber can achieve an excellent filtering effect As the filter cartridge is only made from polypropylene, the resistance to chemical reagents for both organic solvent and the inorganic solvent is all good.

Most water purifiers use a polypropylene sediment removal filter cartridge for the first stage of the filter element. The first stage of the filter element is not only directly affects the water quality but also affects the subsequent secondary or tertiary filtration effect and the life of the filter element. Therefore, the quality of the PP filter is essential for water purifiers.

If the RO system is not equipped with a polypropylene sediment removal filter, the raw water directly enters the RO membrane. Excessive particles, precipitates, microorganisms, and bacterial viruses that are not treated will block in the RO membrane, and the life of the RO membrane will be shortened, which will also affect the quality of the final water.

Second Stage Filtration (Activated Carbon Block Filter)

CTO Carbon block filters are made from activated carbon and its specific function is the chemical adsorption of impurities and contaminants in drinking water.

Activated carbon block filter is an ideal medium for treating contaminants in water, offering a large surface area for the adsorption of dissolved matter. Building upon this, the solid carbon block enhances the medium by preventing channeling, increasing surface contact time, and enabling custom pore formulation for mechanical filtration. Carbon Blocks are one of the most effective and widely used technologies in the Point Of Use (POU) drinking water treatment industry.

• High quality high flow filters
• Flow rate:  +/- 5000 litres per hour
• Uses little pressure 1,5 bars incoming pressure
• Uses 2 x 5micron PP / Sediment 20” BB Filters and 1 x 20” BB carbon Block
• Flow Rate of UV Light 2720 litres per hour
• ¾  ” inlet/outlet
